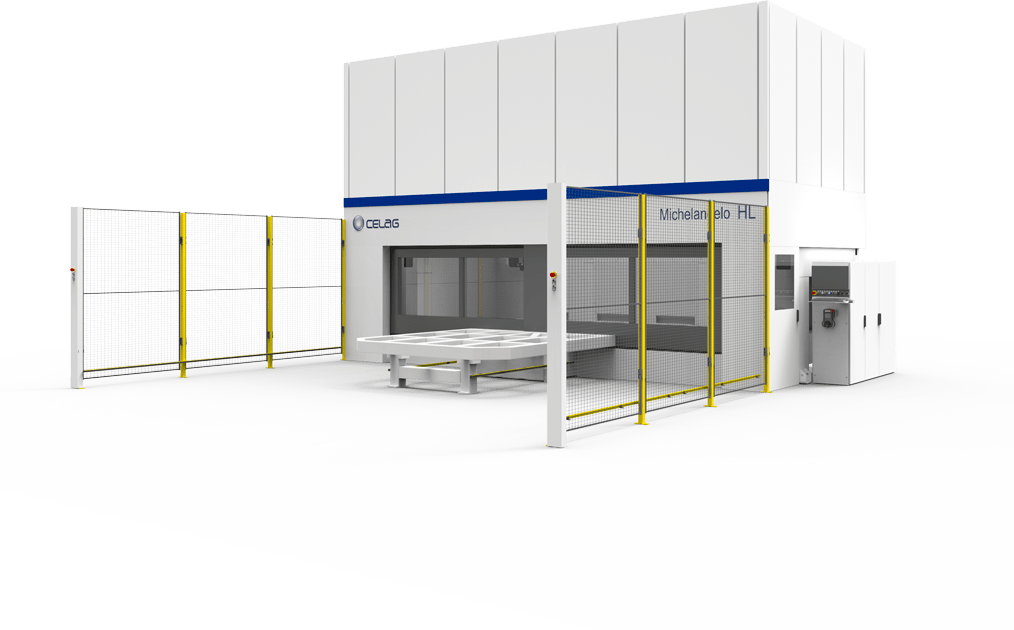

MICHELANGELO HL

5-axis portal machining center with mobile bridge

HIGH SPEED PROCESSING

The Michelangelo HL Machining Center with Rotating Table is the ideal solution for high-speed machining on composite materials and is particularly suitable for productions that require the ability to machine many pieces in the shortest possible time.

5-AXIS TECHNOLOGY FOR PROCESSING CARBON FIBER

The rotating table guarantees maximum speed in production processes thanks to the possibility of loading and unloading in masked time

Easy access to the outside of the work area allows you to load even the biggest pieces with great comfort and in total safety.

OPERATING UNITS

High torque even at low speed. The HSK interface guarantees torque transmission, speed and precision when changing tools.

Electro-spindles range Use
Power 10/12 kW Asyn
Type HSK F63
Max speed 24.000 rpm
Nominal speed 7.500 rpm
Liquid cooled
Suitable for plastics, composites, wood machining
Power 15/18 kW Asyn
Type HSK F63 / HSK A63
Max speed 24.000 rpm
Nominal speed 12.000 rpm
Liquid cooled
Suitable for composites, aluminium machining
Power 22/25 kW Synch
Type HSK F63 / HSK A63
Max speed 24.000 rpm
Nominal speed 10.600 rpm
Liquid cooled
Suitable for composites, aluminium machining

SUCTION AND CLOSING

Michelangelo Hl with revolving table is equipped with a soundproof cabinet and a powerful suction system that allows you to deal with the work on the most demanding materials such as carbon, ensuring greater cleanliness of the work environment and greater operator safety.

DATA SHEET

Michelangelo HL
Electrospindle Power 11/13 kW
Power 15/18 kW
Power 22/25 kW
Axis Range
X = 4000/5000
Y = 1800/2200/2600mm
Z = 1.200mm
A = ± 120 °
C = ± 360 °
Rapid Traverse
X-Y-Z = 80 m/min
B/C = 75 °/sec
Tool Warehouse
8-position travelling linear tool warehouse
Carousel tool warehouse with 16-positions
