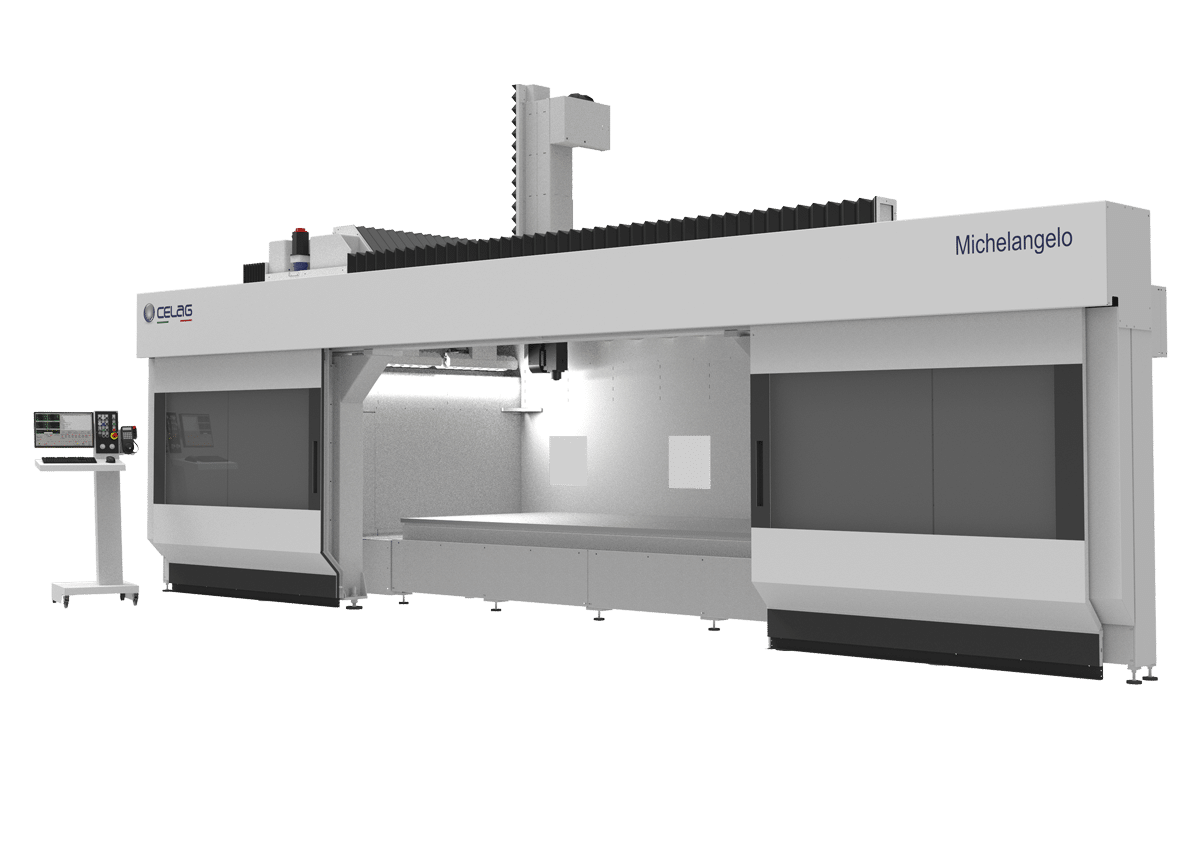

MICHELANGELO HL

5-axis portal machining center with mobile bridge

Centro di Lavoro 5 assi Michelangelo

HIGH SPEED PROCESSING

MICHELANGELO HL is a 5-axis portal machining center with mobile bridge designed for high-speed machining of composite materials and light alloys.

THE TOP OF 5-AXIS TECHNOLOGY

Built to operate at high speed and on the most complex three-dimensional shapes, thanks to the advanced structural design that allows to reduce vibrations to a minimum and to the large size of the work area, it is used in many sectors, from the trimming of plastic and composite materials milling of resin models and aluminum molds.

OPERATING UNITS

High torque even at low speed. The HSK interface guarantees torque transmission, speed and precision when changing tools.

Electro-spindles range Use
Power 10/12 kW Asyn
Type HSK F63
Max speed 24.000 rpm
Nominal speed 7.500 rpm
Liquid cooled
Suitable for plastics, composites, wood machining
Power 15/18 kW Asyn
Type HSK F63 / HSK A63
Max speed 24.000 rpm
Nominal speed 12.000 rpm
Liquid cooled
Suitable for composites, aluminium machining
Power 22/25 kW Synch
Type HSK F63 / HSK A63
Max speed 24.000 rpm
Nominal speed 10.600 rpm
Liquid cooled
Suitable for composites, aluminium machining

SUCTION AND CLOSING

The Michelangelo HL machining center can be equipped with an extremely effective suction system to be able to deal with even the most difficult materials.

The Michelangelo HL work center can be equipped with a system of sky bellows that limit the escape of fumes, dust and shavings from the work area. In addition to preserving the machine mechanics, this application also helps to maintain a cleaner and healthier environment for the operator.

Centro di Lavoro 5 assi Michelangelo

MATERIALS TREATED

The machining centers, as we said earlier, are widespread and appreciated in industrial processes also for their ability to work many materials.

  • Plastic
  • Resins
  • Composite materials
  • Aluminum
  • Advanced materials
  • Polyurethane
  • Wood
  • MDF
  • Polystyrene eps and xps

INDUSTRIAL APPLICATIONS

The 5-axis mechanical processes are used to make components and semi-finished products in different sectors, among which the most relevant are:

AUTOMOTIVE INDUSTRY: cnc in the automotive industry are used to make resin and aluminum molds, style models, trimming of plastic, carbon and composite components

MEDICAL INDUSTRY: cnc in the medical industry are used to cope with an increasingly high demand for processing dictated by the aging population that is playing an important role in the growth of the sector.

NAUTICAL INDUSTRY: cnc in the nautical industry are used to meet the most diverse needs that extend from shipbuilding to pleasure boats with the need to work on different types of materials; The machine tools will be used for processes that start from the modeling and trimming of hulls up to the smallest details in fiberglass and composite.

AEROSPACE INDUSTRY: the aerospace sector imposes severe requirements both in terms of material and complex shapes. CNCs in the aerospace industry are used for the machining of structural parts such as wings, bulkheads, trolley systems, engine parts and interior components using a wide range of high-tech complex materials and alloys ranging from titanium to carbon to aluminu.

DATA SHEET

MODEL CORSE ASSI
X Y Z B C
Michelangelo HL 4018 4000 1800 1200 +-120 +-360
Michelangelo HL 5018 5000
Michelangelo HL 6018 6000
Michelangelo HL 4026 4000 2600
Michelangelo HL 5026 5000
Michelangelo HL 6026 6000
